 Origin |
Korea |
| Model Number |
D1 60 / HD1 120 / CIF 240 |

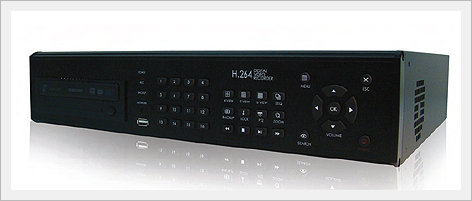

CDR-1016 16 Channel Digital Video Recorder!!
Features
- Highly effective H.264 codec
- Crystal clear image quality
- Extended recording time - Save 30% or more
- Easy multilingual interactive GUI
- Quick & Easy search engine (within 5 seconds)
- Live view & Search via web viewer
- Event notification via e-mail
- Convenient virtual keyboard
- Mouse operation with hot plug & play facility
- Easy upgrade & Backup using USB 2.0
- Easy to install & Low maintenance cost
- SATA HDD supported
- Quadplex operation(Live, Recording, Network, Backuo or Playback)
Specification
| VIDEO |
| Standard |
NTSC/PAL Auto detection |
| Input |
16 x BNC, 1.0Vpp±10% |
| Output |
16 x BNC (Loop Out ), MainTV, Mux TV (Both are composite) S-Video, VGA |
| |
|
| AUDIO |
| Line Input |
4 x RCA, <1.4Vpp@20kohm |
| Line Output |
1 x 3.5mm stereo jack |
| |
|
| LIVEVIEW |
| Resolution |
704 x 480 (NTSC) / 704 x 576 (PAL) |
| Color Control |
CONT. / BRI. / SAT. (Effects on recording also) |
| |
|
| RECORDING |
| Compression |
H.264 / ADPCM |
| Rate (NTSC) |
60fps @704x480
120fps@704x240
240fps@352x240 |
| Rate (PAL) |
50fps @704x576
100fps@704x288
200fps@352x288 |
| Quality |
5 Levels |
| Schedule |
Normal / Panic / Motion / Alarm / Motion or Alarm |
| Pre-alarm |
5 sec. (Fixed) |
| Post-alarm |
10 sec. ~ 30 min. |
| Watermark |
Support |
| Holiday |
Support holiday schedule |
| |
|
| STORAGE |
| Default |
3 x SATA HDD (CD/DVD is an optional device)
1x e-SATA (Rear Panel) |
| External |
USB 2.0 Falsh Disk / HDD |
| |
|
| SEARCH |
| Mode |
Calendar / Event |
| Fwd. Playback |
x1 / x4 / x8 / x16 / x32 / x64 |
| Rev. Playback |
x1 / x4 / x8 / x16 / x32 / x64 |
| Quick Playback |
Goto 10minutes ago |
| |
|
| BACKUP |
| Format |
Native Database / AVI |
| Media |
Built-in CD/DVD
USB2.0Flash disk / HDD / CD / DVD |
| |
|
| ALARM |
| Alarm In |
16 x Terminal block (NC/NO programmable) |
| Alarm Out |
4 x Terminal block (relay contact, NC & NO) |
| |
|
| PTZ |
| Port |
1 x RS-485 / Up to 19.2kbps |
| Protocol |
Various / Up to 6 protocols (option) |
| Function |
PTZ, Focus, 128 Preset, Preset Tour |
| |
|
| NETWORK |
| Port |
1 x RJ45 10/100 Ethernet |
| Dynamic IP |
DHCP / DDNS |
| NTP |
Support |
| E-mail |
Event notification |
| Web view |
Live / Search |
| CMS |
Support |
| |
|
| SYSTEM |
| Language |
Multi language |
| Recovery |
Auto database recovery |
| HDD S.M.A.R.T |
Support |
| Watchdog |
Dual (S/W & H/W) |
| Log book |
Up to 1,000 records |
| F/W Upgrade |
USB flash disk |
| Time Control |
Network time server supported
DayLight Saving supported |
| |
|

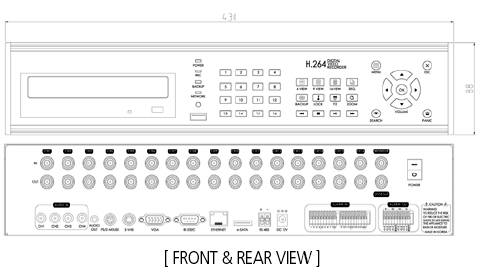

| I/O PORT |
| Video |
16 x Video input, BNC
16x Video loop output, BNC
1xMux TV, BNC
1x MainTV, BNC
1x S-Video, 4pin mini din
1x VGA output, Dsub 15pin |
| Audio |
4 x Audio input, RCA
1x Audio output, 3.5mm stereo jack |
| Alarm |
16 x Alarm in, 10pin x 2 terminal Block
4x Alarm out, 10 pin terminal Block |
| Serial I/F |
1 x USB 2.0 (Front)
1x e-SATA
1x RS232, Dsub 9 pin (Debugging port)
1x RS485, 2 pin terminal block |
| Network |
1 x Ethernet, RJ-45 |
| Mouse |
1 x PS/2, 6pin mini din |
| |
|
| DIMENSION |
430(W) x 88(H) x 340(D) |
| |
|
| POWER |
+12Vdc / 5A (TBD) |
| |
|
| OPTION |
DVD-R/W |
|
|
|
|
| |
|
|
|
